- 編號：52270558
- 頻率：156.25MHz
- 尺寸：3.2×2.5mm
NSC5186A|LVPECL差分貼片晶振|6G基站晶振|3225mm
日本NDK晶振,NP3225SAB有源晶振,NSC5186A石英晶體振蕩器,LVPECL輸出晶振,差分貼片晶振,頻率156.25MHz,電壓2.5V,工作溫度-40~85°C,尺寸3225mm,6G基站晶振,6G兼容設備晶振,光終端設備晶振,以太網設備晶振,SONET/SDH設備...
.jpg)
NSC5186A|LVPECL差分貼片晶振|6G基站晶振|3225mm,日本NDK晶振,NP3225SAB有源晶振,NSC5186A石英晶體振蕩器,LVPECL輸出晶振,差分貼片晶振,頻率156.25MHz,電壓2.5V,工作溫度-40~85°C,尺寸3225mm,低相位抖動晶振,無鉛環保晶振,6G基站晶振,6G兼容設備晶振,光終端設備晶振,以太網設備晶振,SONET/SDH設備晶振,汽車音響設備晶振,汽車電腦晶振.
NSC5186A|LVPECL差分貼片晶振|6G基站晶振|3225mm特點：
●輸出規格:LVPECL
●緊湊尺寸:3.2 × 2.5 × 0.9 mm
●電源電壓:+2.5 V或+3.3 V
●出色的低相位抖動(型式42 fs @156.25 MHz)
●自動安裝膠帶和紅外回流(無鉛)是可能的。
●無鉛
.gif)
NSC5186A|LVPECL差分貼片晶振|6G基站晶振|3225mm參數表
| 項目 | 符號 | 數值 | 注意 | ||
| 頻率 | fnom | 156.25MHz | |||
| 電壓 | VCC | +2.5 V | |||
| 電壓消耗運行 | ICC | 60mA max | at 25 °C | ||
| 輸出水平 | - | LVPECL | |||
| 負載 | RL | 50Ω | Connect to VCC - 2.0 V | ||
| 工作溫度 | Topr | -40 °C to +85°C | |||
| 頻率公差 | Δf/fnom | ±50 ppm | *1 | ||
| 輸出電壓 | VOL | VCC- 1.5Vmax | |||
| VOH | VCC- 1.1Vmin | ||||
| 上升下降時間 | tr/tf | 1ns max | 20 % to 80 % waveform | ||
| 對稱 | SYM | 45%min -55%max | at 50 % Waveform | ||
| 啟動時間 | tsu | 10ms max | |||
| 相位抖動 | tpj | 1ps | *2 | ||
| 輸出波形 | - | Square wave | |||
| 儲存溫度 | T_stg | -55°C to+125°C | |||
.gif)

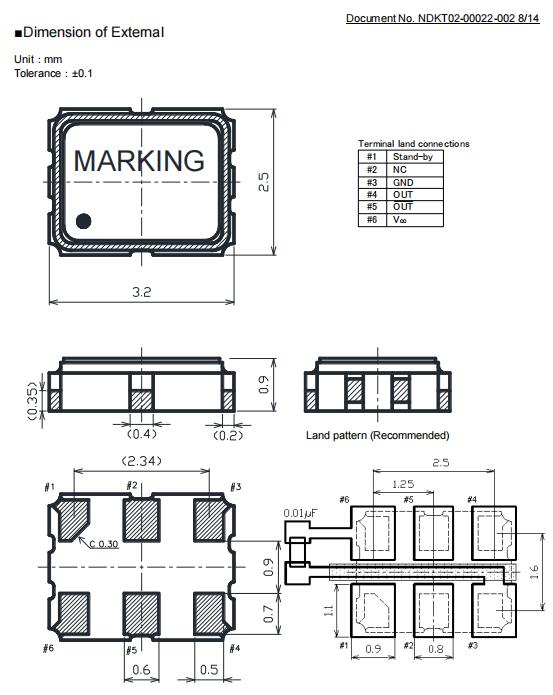

NSC5186A|LVPECL差分貼片晶振|6G基站晶振|3225mm 尺寸圖
| 型號 | 頻率[MHz] | 規格編號 | 尺寸(LxW)[mm] | 輸出方式 | 工作溫度[℃] | 電源電壓[V] |
| NP3225SA | 100MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5236A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5236B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5238A | 3.2x2.5 | LVDS | -40?+105 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5238B | 3.2x2.5 | LVDS | -40?+105 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5082A | 3.2x2.5 | HCSL | -40?+85 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5345B | 3.2x2.5 | HCSL | -40?+85 | +3.3±0.33 |
| NP3225SC | 100MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | +2.5±0.125 |
| NP3225SC | 156.25MHZ | NSC5191A | 3.2x2.5 | HCSL | -40?+105 | +2.5±0.125 |
| NP3225SC | 100MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | +3.3±0.33 |
| NP3225SC | 156.25MHZ | NSC5346B | 3.2x2.5 | HCSL | -40?+105 | +3.3±0.33 |
| NP3225SAB | 100MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SAB | 125MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SAB | 156.25MHZ | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | +2.5±0.125 |
| NP3225SAB | 100MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SAB | 125MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SAB | 156.25MHZ | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SBB | 100MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SBB | 125MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SBB | 156.25MHZ | NSC5187A | 3.2x2.5 | LVDS | -40?+85 | +2.5±0.125 |
| NP3225SBB | 100MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SBB | 125MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SBB | 156.25MHZ | NSC5187B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SAD | 100MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SAD | 156.25MHZ | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | +3.3±0.33 |
| NP3225SBD | 100MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SBD | 156.25MHZ | NSC5348B | 3.2x2.5 | LVDS | -40?+85 | +3.3±0.33 |
| NP3225SCD | 100MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | +3.3±0.33 |
| NP3225SCD | 156.25MHZ | NSC5349B | 3.2x2.5 | HCSL | -40?+85 | +3.3±0.33 |
| NP3225SBA | 100MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | +2.5 ± 0.125 |
| NP3225SBA | MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | +2.5 ± 0.125 |
| NP3225SBA | 156.25MHZ | NSC5391A | 3.2x2.5 | LVDS | -40~+105 | +2.5 ± 0.125 |
| NP3225SBA | 100MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | +3.3 ± 0.33 |
| NP3225SBA | 125MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | +3.3 ± 0.33 |
| NP3225SBA | 156.25MHZ | NSC5391B | 3.2x2.5 | LVDS | -40~+105 | +3.3 ± 0.33 |
| NP3225SCA | 100MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | +3.3 ± 0.33 |
| NP3225SCA | 125MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | +3.3 ± 0.33 |
| NP3225SCA | 156.25MHZ | NSC5392B | 3.2x2.5 | HCSL | -40~+105 | +3.3 ± 0.33 |
